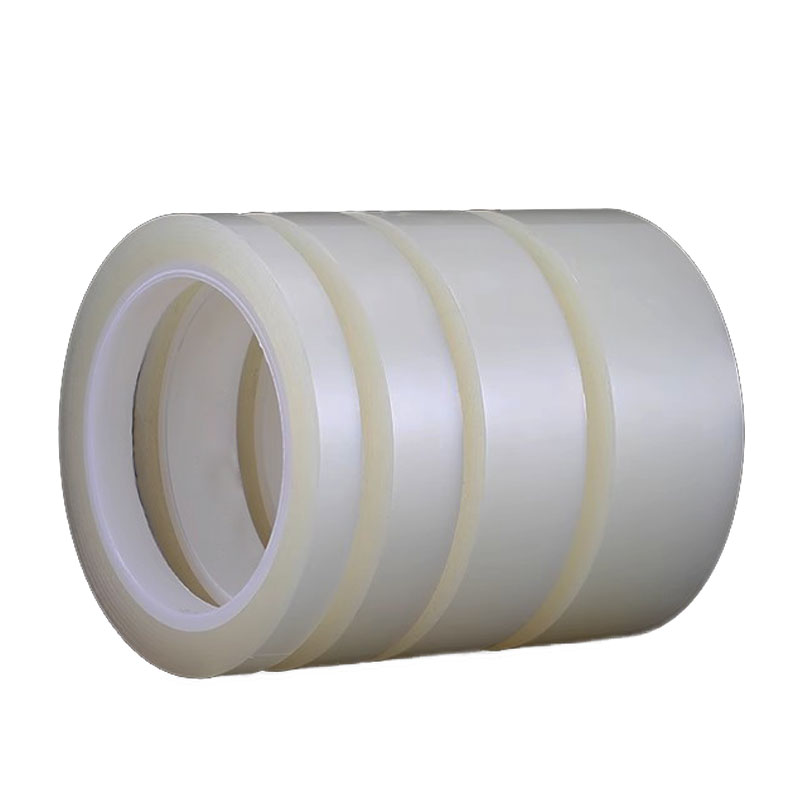

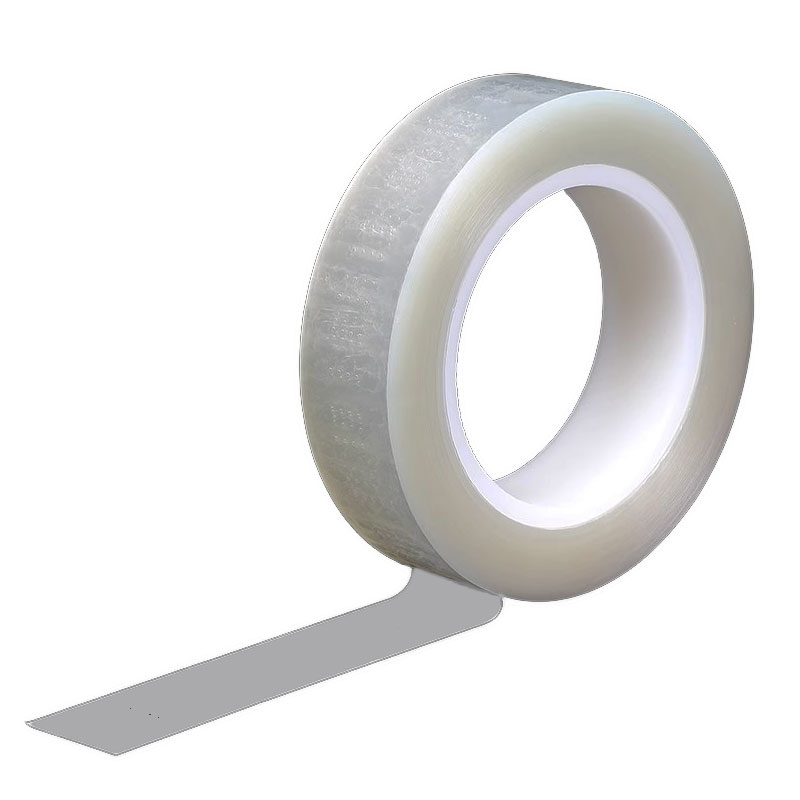

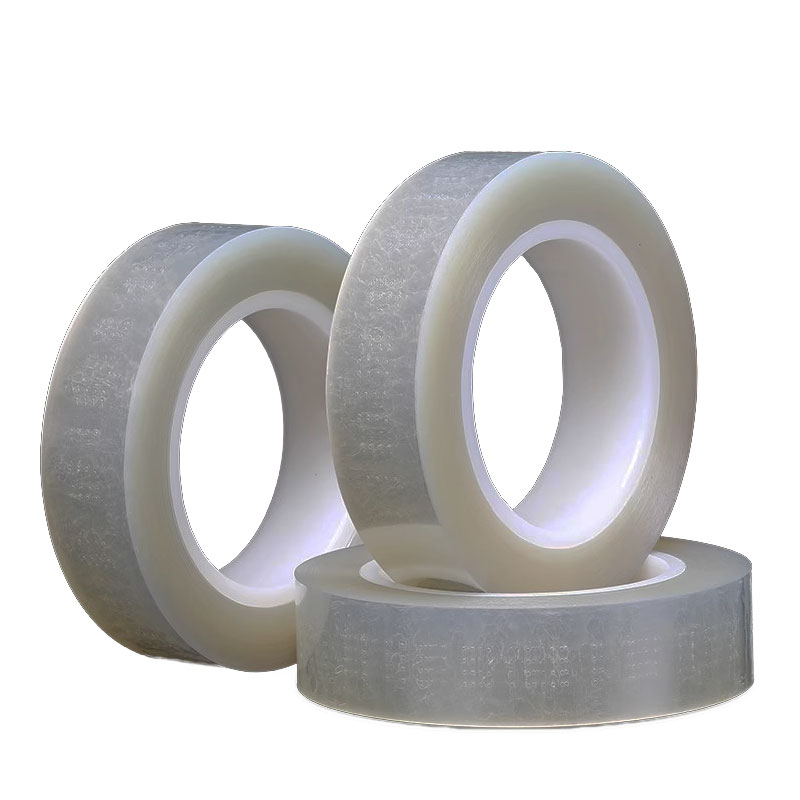

High-Temperature Positioning Tape

Outstanding Heat Resistance: Designed to handle prolonged exposure to temperatures as high as 155°C and brief spikes of up to 180°C, ensuring dependable performance in demanding solar panel applications.
- Enhanced Adhesion and Longevity:Built with a PET backing and advanced silicone rubber adhesive for superior bonding to photovoltaic glass. Its weather-resistant primer coating adds excellent UV and aging durability.
- Versatile and Precise Design:This transparent, single-sided tape is ideal for splicing filmic materials, litho mounting, edge protection, and reinforcement. Available in various widths and lengths, accommodating up to 200m rolls.

Product Features

Good stability, can effectively, improve and deal with die cutting and bonding.

The high adhesion adhesive provides excellent adhesion to avariety of surfaces.

Good resistance to temperature, thermal conductivity, insulation properties.

used for bonding and heat dissipation of LED strips,electronic components and other components.

product material

TECHNICAL Parameters

Technical Specifications

Specification	Details
Brand	Fonitaniya
Serial Number	FON 10021
Backing	PET
Adhesive	Silicone Rubber
Color	Transparent
Temperature Resistance	-40°C to 180°C
Thickness (μm)	65, 85, 135
Customizable	Yes
UV-Resistant	Yes
Elongation (% at Break)	80
Adhesion to Steel (N/10 mm)	4.5
Tensile Strength (N/10 mm)	50 / 60.1
Operating Temperature	-40°C to 155°C
Peak Temperature	180°C for 30 minutes
Storage Period	12 months
Storage Conditions	5-30°C, 40-60% RH
Production Environment	10,000-level dust-free workshop

Product Details

Fonitaniya Solar Tape

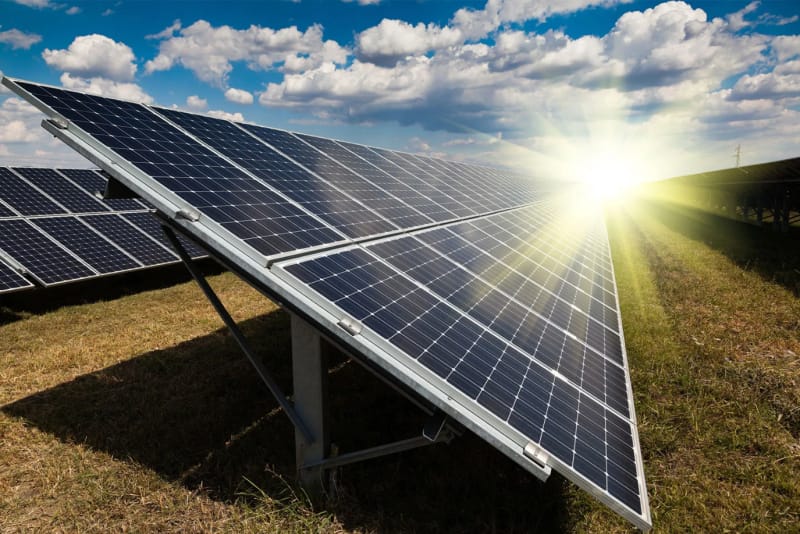

The High-Temperature Positioning Tape (FON 10021) is a precision-engineered solution tailored for double-glass solar modules. Designed to secure and position solar cells effectively, this specialized tape ensures exceptional durability and optimal performance in photovoltaic systems.

Manufactured with a robust PET backing and coated with a premium silicone rubber adhesive, this tape delivers exceptional adhesion to photovoltaic glass. It is crafted to withstand long-term exposure to temperatures of up to 155°C, while short-term peaks of 180°C for up to 30 minutes ensure reliability under extreme conditions. Produced in a state-of-the-art, 10,000-level dust-free workshop, the tape offers a flawless finish and unmatched reliability.

The transparent, single-sided design provides versatility for multiple applications, including splicing filmic materials, litho mounting, and edge protection or reinforcement. With excellent initial tack, high shear strength, and a weather-resistant primer coating, it boasts remarkable UV resistance and aging durability. Customizable in widths and lengths up to 200 meters, this solar tape meets diverse installation needs, making it an indispensable tool for solar panel assembly and maintenance.
