Fibreglass Aerogel Insulation Film for Electronic Devices

• Optimal Thickness: Designed specifically for electronic applications to provide the ideal balance of form and function.
• Exceptional Thermal Efficiency: Offers outstanding insulation with low thermal conductivity across various temperatures.
• Robust Durability: High tensile strength and superior compression resistance ensure long-lasting performance.
• Safe & Compliant: Free from asbestos and meets RoHS standards, making it suitable for sensitive environments.
• High Fire Resistance: Achieves dual-grade safety ratings of A1 and V0 for reliable combustion protection.

Product Features

Good stability, can effectively, improve and deal with die cutting and bonding.

The high adhesion adhesive provides excellent adhesion to avariety of surfaces.

Good resistance to temperature, thermal conductivity, insulation properties.

used for bonding and heat dissipation of LED strips,electronic components and other components.

product material

TECHNICAL Parameters

Product Specifications

Brand	Fonitaniya
Model	UW-G600
Serial Number	FON-10102
Thickness Options	3mm, 5mm, 6mm, 10mm
Width	1500mm (-3, +15) (customizable)
Color	Full CMYK
Maximum Usage Temperature	600°C
Density	190±20kg/m³
Thermal Conductivity	25°C:≤0.020 W/m·K 200°C:≤0.027 W/m·K 300°C:≤0.035 W/m·K 500°C:≤0.080 W/m·K
Combustion Ratings	A1 (GB/T 8624-2012), V0 (UL 94-2013)
Water Repellency	≥98%
Asbestos Content	None
Compliance	RoHS, REACH (≤0.1% w/w SVHC), ELV
Tensile Strength	800KPa
Compression Performance	10% deformation:20KPa 25% deformation:120KPa

Product Details

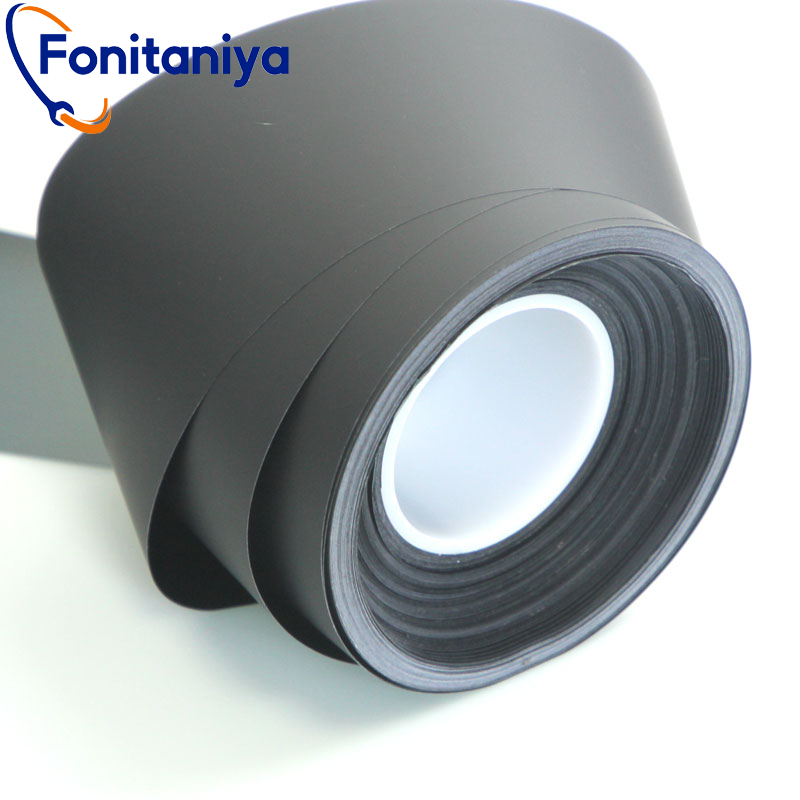

Fibreglass Aerogel Insulation Film

Fonitaniya™ Fibreglass Aerogel Insulation Film is a cutting-edge solution designed to regulate thermal conditions in electronic devices. Its fiberglass-reinforced aerogel composition effectively reduces heat transfer, protecting delicate components and boosting their longevity. Available in customizable dimensions and vibrant CMYK color options, it blends functionality with visual appeal.

This advanced material offers superior thermal management, featuring low thermal conductivity and excellent tensile strength, making it an ideal choice for electronic devices, battery systems, telecommunications, and consumer gadgets.

The insulation film is crafted to meet rigorous environmental and safety standards. It is free from asbestos, RoHS-compliant, and REACH-certified, ensuring sustainable and safe use. Additionally, its high water repellency and resistance to compression enhance its reliability for diverse thermal management needs.

product Application

Electronic Devices

7 Jan 2019

Provides efficient insulation to improve heat management and extend device lifespan.

Battery Systems

7 Jan 2019

Delivers optimal thermal regulation, improving safety and performance.

Telecommunications Equipment

7 Jan 2019

Safeguards components against overheating, ensuring smooth operation.

Consumer Electronics

7 Jan 2019

Ideal for lightweight, efficient heat insulation in modern gadgets.
