Fibreglass Aerogel Blanket

Superior Insulation: Combines fiberglass and aerogel to deliver exceptional thermal protection, handling temperatures up to 650°C.
Lightweight and Durable: Features high hydrophobicity (≥98%) and non-combustible A1 classification, ensuring reliability and safety.
Customizable Specifications: Offers adjustable thickness (3mm to 10mm) and width, with low thermal conductivity for optimal heat management.
Eco-Friendly Compliance: Meets RoHS and REACH standards, making it suitable for industrial, automotive, and chemical uses.



    Product Features

    A111zal

    Good stability, can effectively, improve and deal with die cutting and bonding.

    A333f54

    The high adhesion adhesive provides excellent adhesion to avariety of surfaces.

    R7557EQM)RAA4[YDH9[OGY2
    a2222ir1

    Good resistance to temperature, thermal conductivity, insulation properties.

    A44444d0

    used for bonding and heat dissipation of LED strips,electronic components and other components.

    product material

    4c017f8ec1036dbc871c8eb5f18887a

    TECHNICAL Parameters

    Product Details:

    Brand

     Fonitaniya

    Model

     FON-10106

    Material Composition

     ~70% fiberglass, ~30% aerogel

    Temperature Resistance

     Up to 600°C

    Density

     200 ± 20 kg/m³

    Thermal Conductivity

    25°C: ≤0.020 W/m·K

    200°C: ≤0.027 W/m·K

    300°C: ≤0.035 W/m·K

    500°C: ≤0.080 W/m·K

    Fire Resistance

     A1 (GB/T 8624-2012), V0 (UL 94-2013)

    Hydrophobicity

     ≥98%

    Standards Compliance

     RoHS, REACH, ELV

    Tensile Strength

     800 KPa

    Compression Resistance

    10%: 20 KPa

    25%: 120 KPa

    Product Details

    Fibreglass Aerogel Blanket

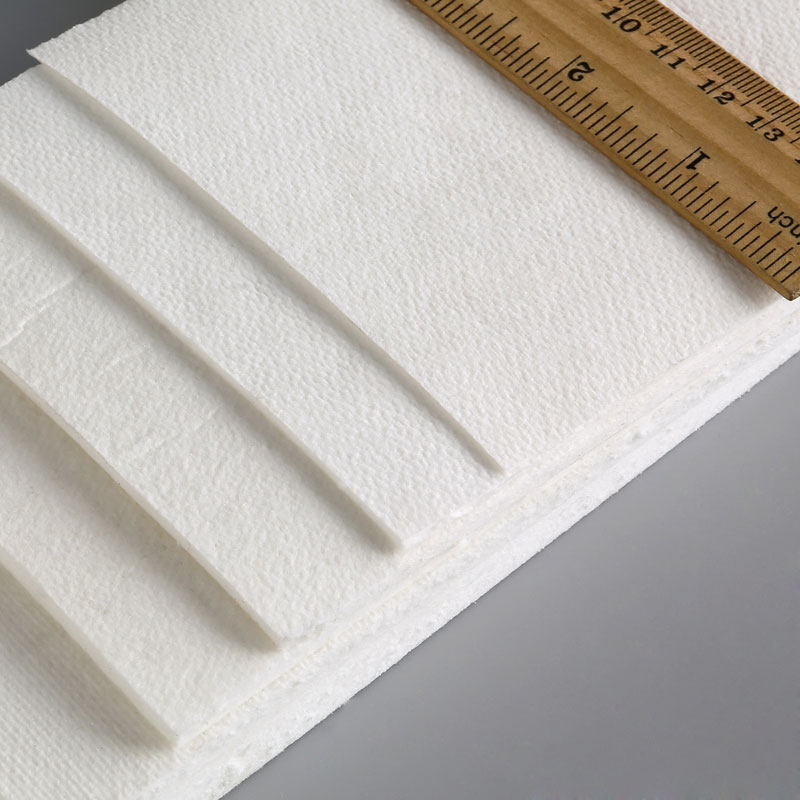

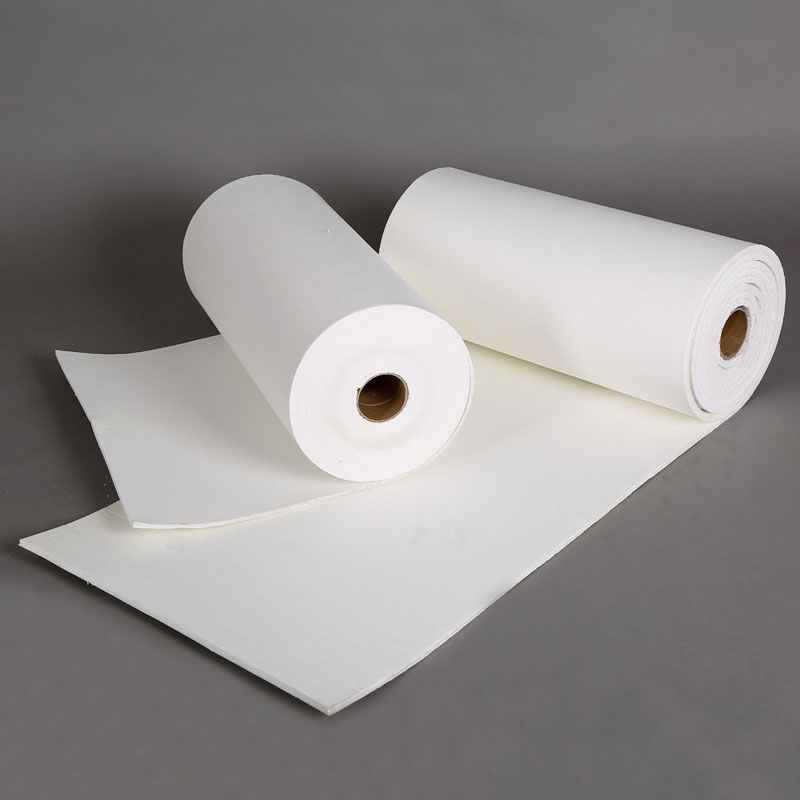

    The Fonitaniya™ FON-10106 is an advanced insulation solution, integrating nano-porous aerogel with needle-punched fiberglass felt. Comprising approximately 70% fiberglass and 30% aerogel, this high-performance material offers exceptional thermal insulation, lightweight properties, and low thermal conductivity, making it an ideal choice for extreme heat environments, withstanding temperatures up to 650°C.
    Its remarkable hydrophobicity (≥98%) ensures excellent moisture resistance, enhancing its effectiveness in challenging conditions. Designed for versatile industrial applications, the Fibreglass Aerogel Blanket plays a pivotal role in battery insulation, thermal runaway barriers, and fire safety for automotive and marine uses. It is also instrumental in managing heat in chemical storage and high-temperature pipeline systems.
    The material has earned trust from major players like ExxonMobil, Shell, and PetroChina for its superior safety, reliability, and environmental compliance with RoHS and REACH standards. This eco-conscious, high-performance insulation material is a dependable solution for a wide range of demanding applications.

    product Application

    4c017f8ec1036dbc871c8eb5f18887a
    01

    Battery Insulation

    7 Jan 2019
    Provides critical thermal barriers to manage heat and prevent thermal runaway.
    67b718649f4799de722c212486afcc1
    01

    Fire Protection

    7 Jan 2019
    Shields vehicles, ships, and equipment against high temperatures.
    f447d3ef21e06cbe00d52c96c74fef1
    01

    Pipeline Insulation

    7 Jan 2019
    Ensures heat efficiency and safety in energy and industrial systems.
