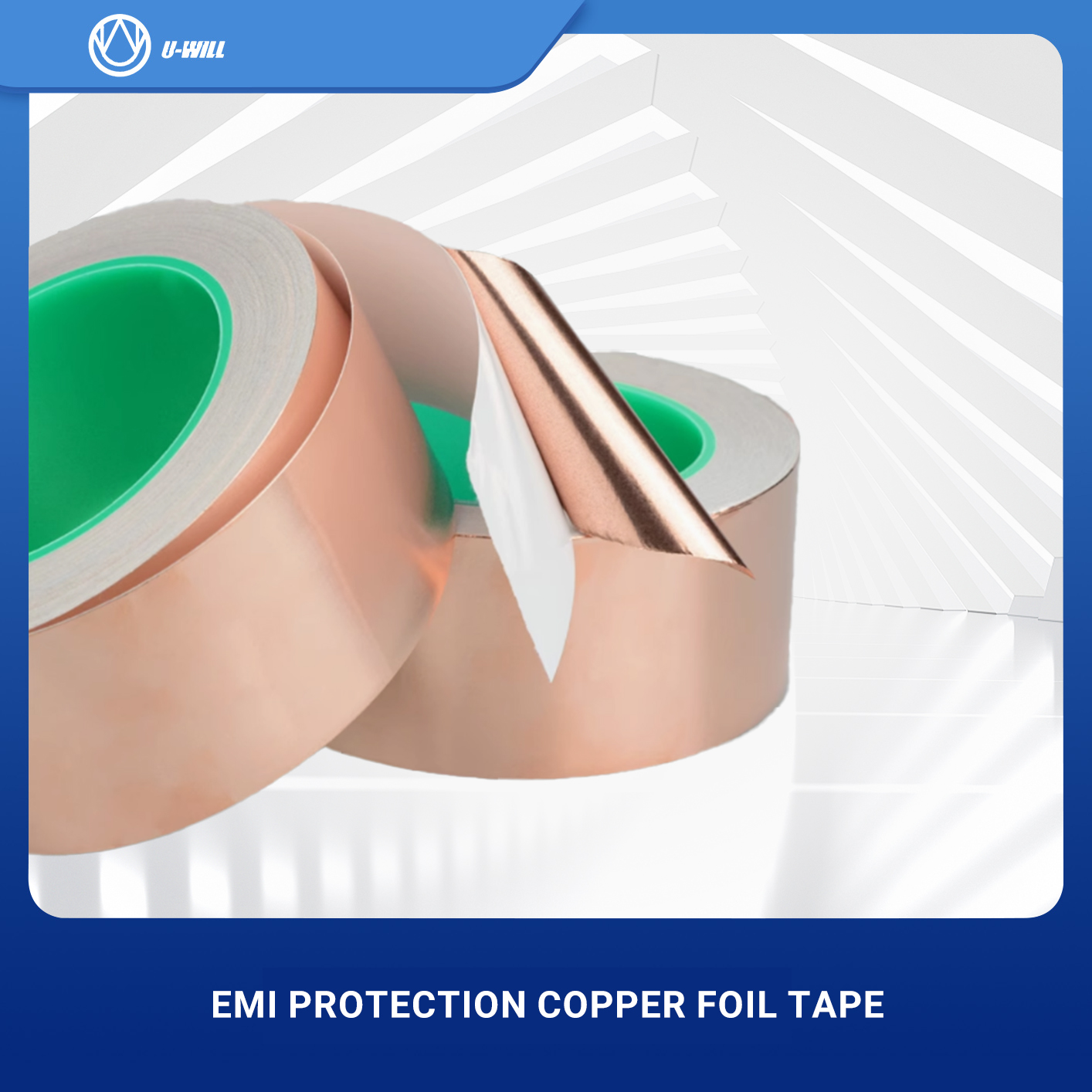

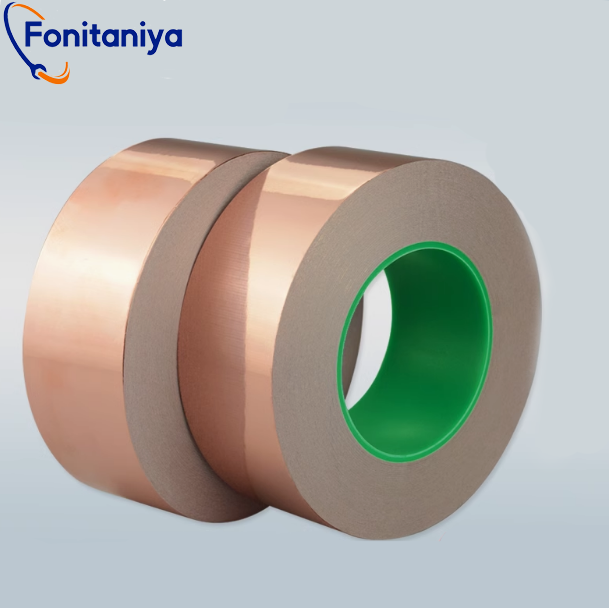

Copper Foil Tape for EMI Shielding
Product Features
Good stability, can effectively, improve and deal with die cutting and bonding.
The high adhesion adhesive provides excellent adhesion to avariety of surfaces.
Good resistance to temperature, thermal conductivity, insulation properties.
used for bonding and heat dissipation of LED strips,electronic components and other components.
product material
TECHNICAL Parameters
Key Specifications of EMI/RFI Shielding Tape
Attribute Details
Brand Fonitaniya
Serial Number FON-10170
Adhesive Type Acrylic
Backing Material Copper Foil
Color Copper
Certifications RoHS 2011/65/EU, UL Recognized
Length (Imperial) 36 yd
Length (Metric) 33 m
Width (Imperial) 0.25 in, 0.5 in, 0.75 in, 1 in
Width (Metric) 6.35 mm, 12.7 mm, 19 mm, 25 mm
Total Thickness (Imperial) 2.6 mil
Total Thickness (Metric) 0.071 mm
Surface Resistance 50 mΩ
180° Peel Strength 8 – 15 N/inch
Initial Adhesion 2 – 3 #
Retentivity 48 hours
Short-Term Temperature Resistance 120°C
Long-Term Temperature Resistance 80°C
Applications EMI Shielding, Grounding, Die Cutting
UL Listed Yes
Voltage Rating 600V
EMI/RFI Shielding Copper Foil Tape
Engineered with high-purity copper foil, this advanced shielding tape is specifically designed to combat electromagnetic interference. Whether used in consumer electronics or industrial applications, it provides a reliable barrier against EMI, ensuring smooth performance in sensitive electronic devices.
With excellent conductivity and a strong acrylic adhesive, this tape adheres securely to different surfaces while maintaining flexibility. Its easy-to-remove liner enhances usability, making it an ideal choice for grounding, shielding, and various precision applications in electronics and automation.
Applications
Telecommunications: Stabilizes signals in mobile phones and network devices.
Consumer Electronics: Reduces interference in TVs, speakers, and audio equipment.
Industrial Automation: Shields robotic systems and automation lines from electromagnetic disturbances.
Transportation: Enhances safety in electric vehicles and aerospace applications.
Medical Equipment: Maintains signal integrity in precision medical instruments.
