Charge Collection Solar Power Tape

●Superior Electrical Conductivity: Features a tin-plated copper backing paired with conductive acrylic adhesive for optimal electrical performance in solar panels.
●Durable and Reliable: Maintains conductivity even after prolonged exposure to damp heat and electrical aging, ensuring consistent long-term performance.
●Exceptional Adhesion: Offers strong initial adhesion and excellent shear resistance, making it ideal for diverse solar manufacturing applications.
●Surface Options: Available in both embossed and plain surface finishes to meet varying design requirements.
●High-Temperature Tolerance: Withstands temperatures up to 200°C during short-term lamination processes, ensuring stability in standard production environments.

    Product Features

    A111zal

    Good stability, can effectively, improve and deal with die cutting and bonding.

    A333f54

    The high adhesion adhesive provides excellent adhesion to avariety of surfaces.

    ROFFC5QK]C6}XEZ_7X2EM6X
    a2222ir1

    Good resistance to temperature, thermal conductivity, insulation properties.

    A44444d0

    used for bonding and heat dissipation of LED strips,electronic components and other components.

    product material

    4c017f8ec1036dbc871c8eb5f18887a

    TECHNICAL Parameters

    Attributes of Charge Collection Solar Power Tape

    Brand

    Fonitaniya™

    Serial Number

    FON-10024

    Backing Material

    Tin-Plated Copper

    Adhesive Type

    Conductive Acrylic

    Total Thickness

    2.3 mil (0.058 mm)

    Color

    Silver

    Release Liner

    Transparent PET

    Temperature Resistance

    Short-term up to 200°C

    Widths Available

    4 mm, 6.35 mm, 194 mm

    Length Available

    66 m (216′)

    Electrical Resistance

    Less than 0.002 ohm

    Adhesion to Steel

    7 N/cm (after 14 days)

    Shelf Life

    24 months

    Applications

    Thin Film Solar Panels, EMI Shielding for Electronics

    Surface Options

    Embossed or Plain

    Product Details

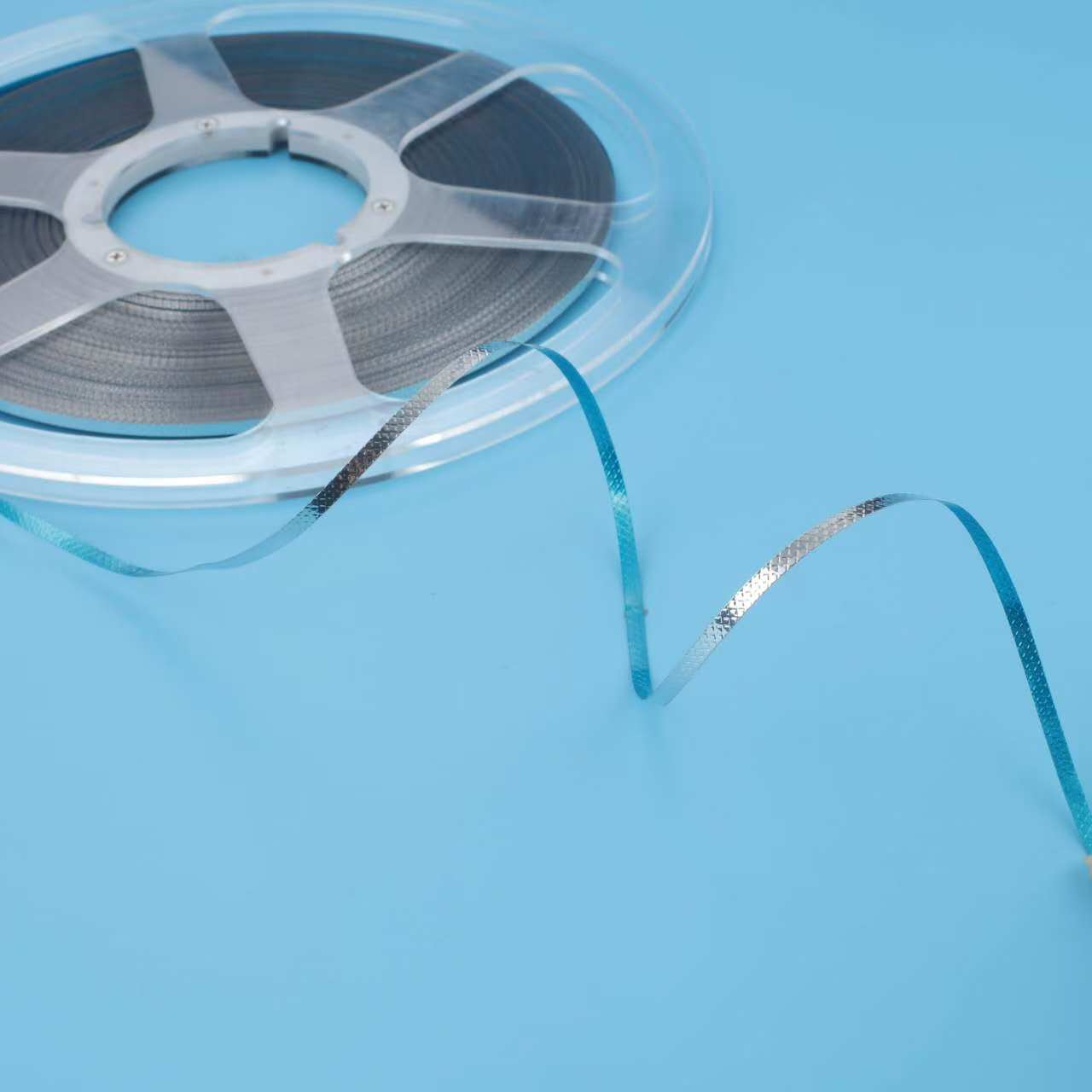

    Fonitaniya™ Charge Collection Solar Power Tape
    Fonitaniya™ Charge Collection Solar Power Tape FON-10024 is a high-performance adhesive tape specifically developed for thin-film solar panels. It features a 1-ounce tin-plated copper foil backing and a conductive acrylic adhesive, making it an effective solution for charge collection and electrical transfer in solar modules. Its composition is designed to withstand vacuum lamination processes typically used in solar panel assembly.
    This tape ensures excellent XYZ conductivity, strong initial adhesion, and impressive resistance to damp heat and electrical aging, guaranteeing long-lasting performance. Its adhesive also boasts high-temperature shear strength, making it a reliable choice for demanding manufacturing environments. Available in multiple standard and custom sizes (from 4 mm to 194 mm in width and up to 66 m in length), it streamlines production by eliminating the curing time required for liquid adhesives, thus enhancing productivity.

    product Application

    Applications of Charge Collection Solar Power Tape
    4c017f8ec1036dbc871c8eb5f18887a
    01

    Efficient Charge Collection

    7 Jan 2019
    Acts as a charge collector or bus, facilitating seamless energy transfer in thin-film solar panels.
    67b718649f4799de722c212486afcc1
    01

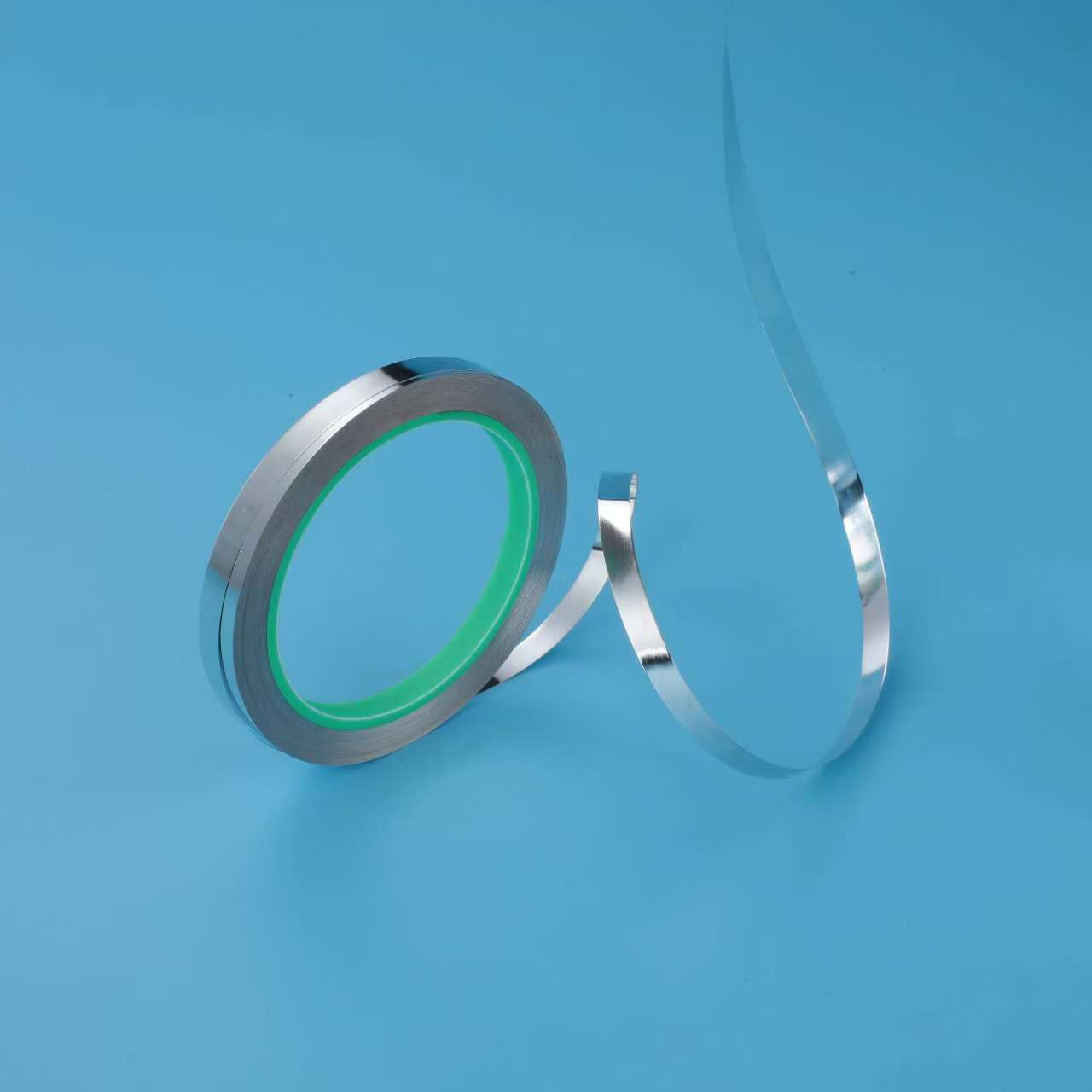

    Vacuum Lamination Compatibility

    7 Jan 2019
    Performs reliably during vacuum lamination processes in solar panel production.
    f447d3ef21e06cbe00d52c96c74fef1
    01

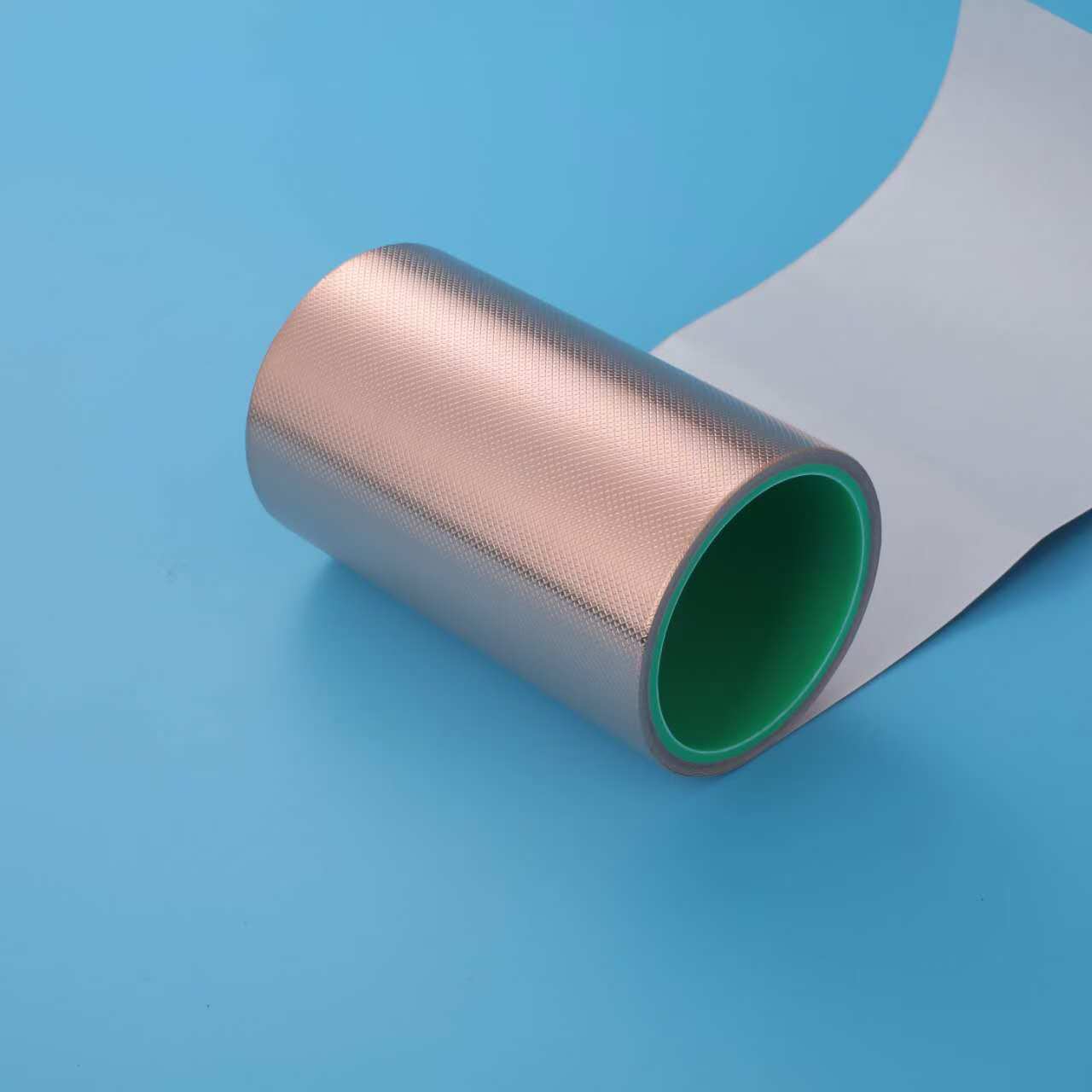

    EMI Shielding for Electronics

    7 Jan 2019
    Provides electromagnetic interference protection for devices like smartphones and tablets.
    2
    01

    Customizable Installation

    7 Jan 2019
    Available in various dimensions to accommodate diverse panel configurations and production needs.
