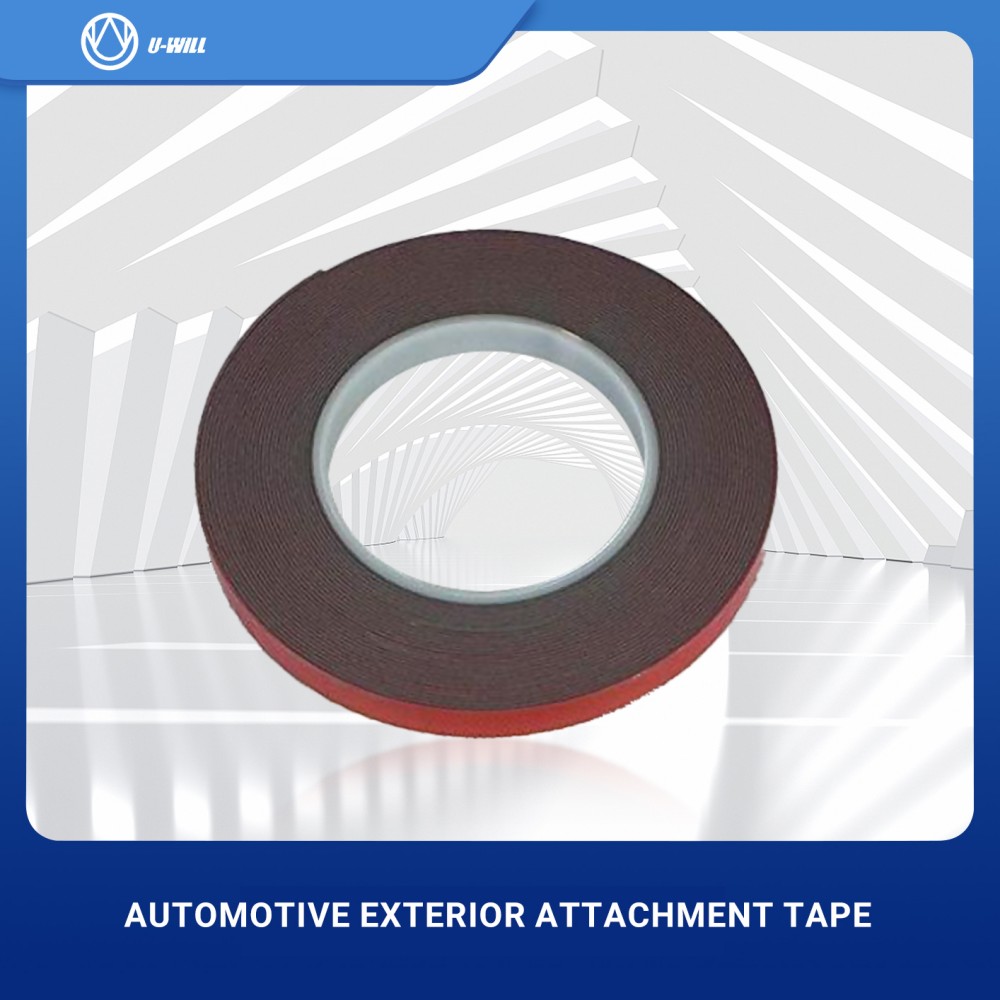

Automotive Exterior Attachment Tape

●Superior Bonding Strength: Offers high shear strength for secure attachment on exterior automotive surfaces.
●Dual Adhesive System: Optimized for strong adhesion to both painted surfaces and trim materials.
●Durable Foam Core: Dark gray acrylic foam core provides stress relief under heavy loads while maintaining a polished appearance.
●Long-Lasting Performance: Exceptional conformability and resistance to plasticizers ensure extended durability.

    Product Features

    A111zal

    Good stability, can effectively, improve and deal with die cutting and bonding.

    A333f54

    The high adhesion adhesive provides excellent adhesion to avariety of surfaces.

    Automotive Exterior Attachment Tape
    a2222ir1

    Good resistance to temperature, thermal conductivity, insulation properties.

    A44444d0

    used for bonding and heat dissipation of LED strips,electronic components and other components.

    product material

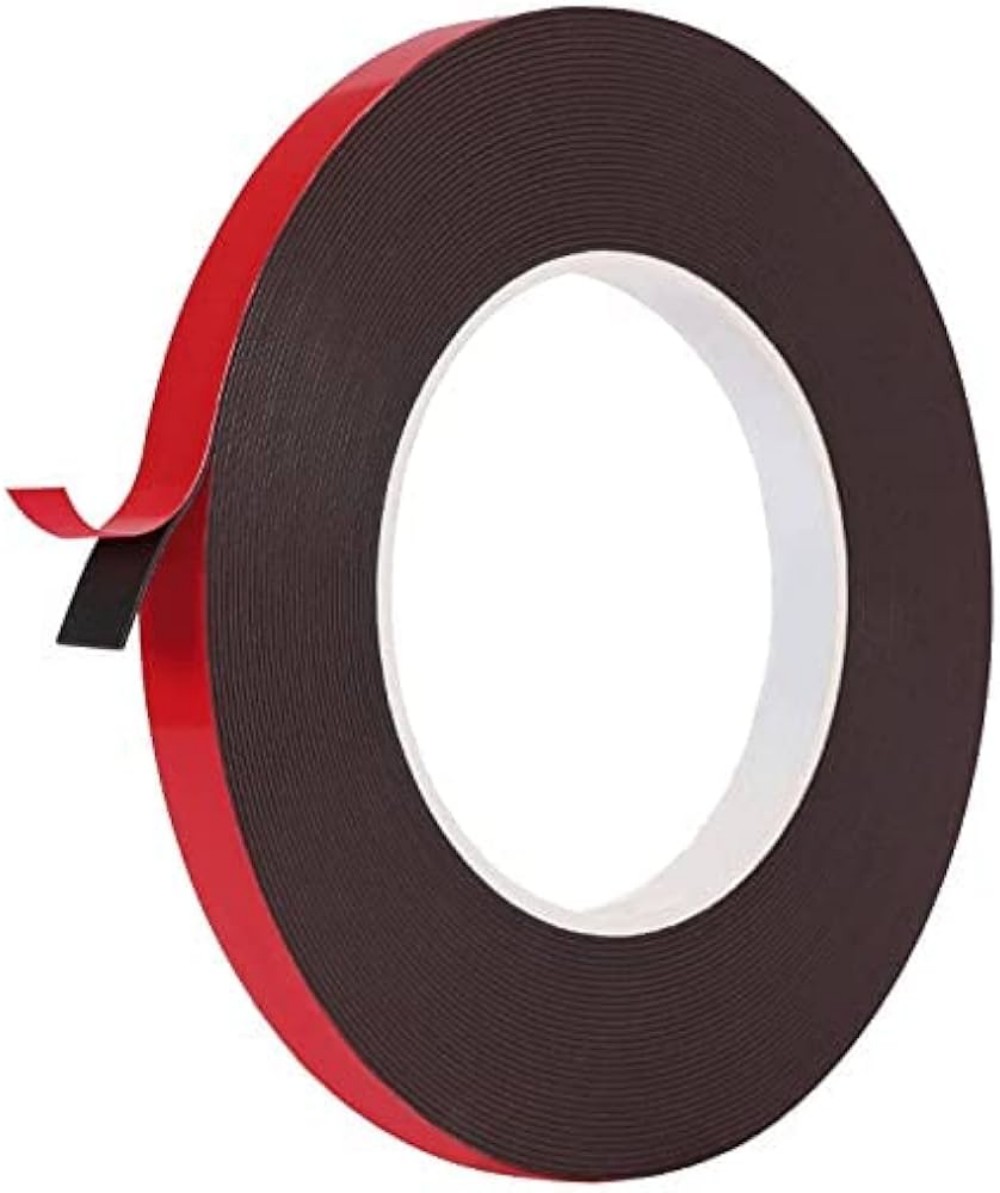

    double sided acrylic tape for automotive attachment

    TECHNICAL Parameters

    Attributes of Double-Sided Acrylic Foam Tape for Automotive Exterior

    Attribute

    Description

    Brand

    Fonitaniya

    Serial Number

    FON-10031

    Product Type

    Automotive Exterior Attachment Tape

    Material

    Acrylic Foam Core with High-Performance Adhesive

    Thickness

    0.70 mm

    Density

    688 kg/m³ (43 lb/ft³)

    Adhesive Type

    Liner Side: High-Performance Acrylic, Non-Liner Side: High-Performance Acrylic

    Color

    Dark Gray

    Liner

    Red Polyethylene for Easy Application

    Performance Features

    High peel and shear strength, excellent conformability, plasticizer resistance

    Application Areas

    Automotive trims, body moldings, door edge moldings, rocker panels

    Roll Widths

    Minimum 4 mm

    Roll Lengths

    Up to 160 m (175 yds.)

    Storage Conditions

    Optimal at 22°C (72°F) and 50% relative humidity

    Shelf Life

    One year from the date of receipt

    Product Details

    Product Description of Automotive Exterior Attachment Tape
    The Fonitaniya Automotive Exterior Attachment Tape FON-10031 is a high-performance bonding solution tailored for automotive trims, body moldings, and other external vehicle components. Constructed with a dark gray acrylic foam core and high-performance adhesives on both sides, this tape ensures robust and reliable attachment for demanding automotive applications.
    Featuring a dual-adhesive system, one side delivers strong adhesion to painted clearcoat surfaces, while the other bonds effectively with trim materials. Its foam core offers excellent stress relief under high loads, ensuring a consistent bond line and aesthetic appeal. This adaptability makes it ideal for use on various surfaces, including those with intricate geometries.

    product Application

    Automotive Exterior Attachment Tape
    01
    7 Jan 2019
    ●Securing automotive trims and decorative elements
    double sided acrylic tape for automotive attachment
    01
    7 Jan 2019
    ●Body side moldings
    Automotive Exterior Attachment Tape
    01
    7 Jan 2019
    ●Door edge moldings
    double sided acrylic tape for automotive attachment
    01
    7 Jan 2019
    ●Dashboard overlays
