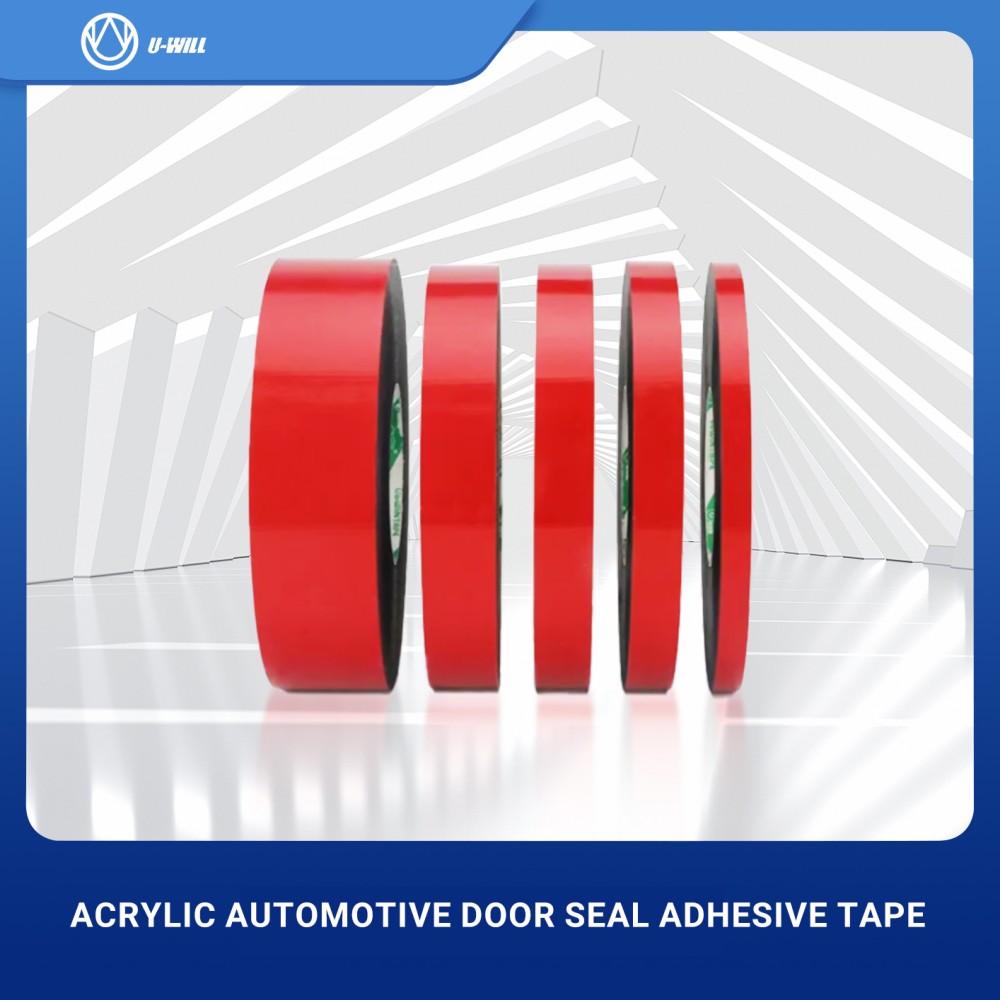

Acrylic Automotive Door Seal Adhesive Tape
Product Features

Good stability, can effectively, improve and deal with die cutting and bonding.

The high adhesion adhesive provides excellent adhesion to avariety of surfaces.


Good resistance to temperature, thermal conductivity, insulation properties.

used for bonding and heat dissipation of LED strips,electronic components and other components.
product material

TECHNICAL Parameters
Attributes of Automotive Door Seal Adhesive Tape
Attribute |
Description |
Brand |
Fonitaniya |
Serial Number |
FON-10034 |
Product Type |
Automotive Door Seal Adhesive Tape |
Material |
Black acrylic foam with heat-activatable adhesive |
Total Thickness |
12 mm (12000 µm) |
Color |
Black |
Adhesive Type |
Acrylic, heat-activatable |
Liner Type |
PE/PP protection film, blue |
Key Features |
High humidity and UV resistance, closed-cell foam, primer-free application |
Performance Strength |
Strong adhesion to seals and clearcoats, excellent stress absorption |
Temperature Range |
-40°C to 90°C |
Tensile Strength |
19 N/cm |
Elongation at Break |
500% |
Storage Conditions |
One year at 18-22°C (64-72°F), 30-70% relative humidity, away from sunlight |
Acrylic Foam Automotive Tape for Door Seal

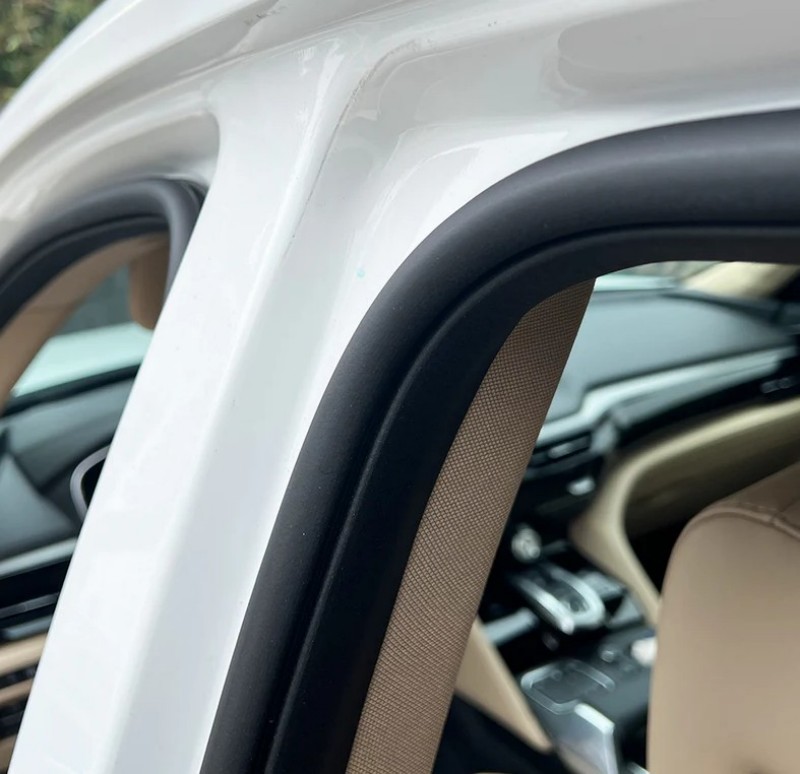

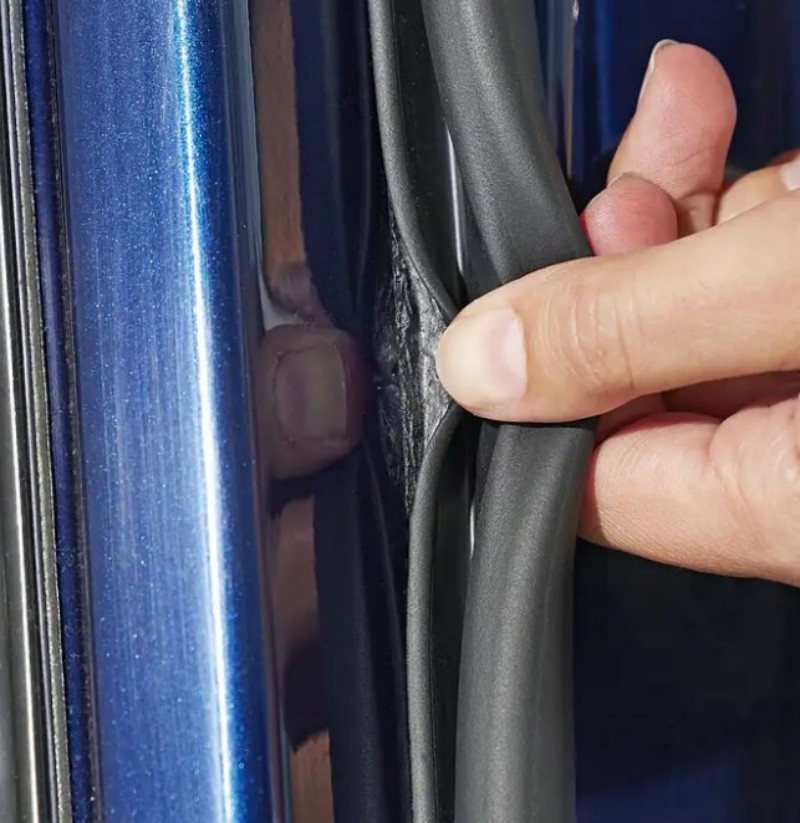

Fonitaniya Automotive Door Seal Adhesive Tape FON-10034 is a premium-quality, black acrylic foam tape with a 12 mm thickness, specifically designed for permanent automotive door seal applications. Its heat-activatable adhesive ensures a secure and reliable bond with materials such as PP/EPDM, TPV, TPE, and PP seals.
The closed-cell foam core enhances dimensional stability, effectively blocking water penetration and extending the durability of door seals. Its ability to bond directly to automotive clearcoats without a primer accelerates production processes while maintaining safety and efficiency.
Engineered with a viscoelastic core, this tape absorbs and dissipates both dynamic and static loads, providing consistent adhesion even in fluctuating temperatures. This makes it an ideal choice for ensuring the longevity and reliability of automotive door seals.

01
Heat-Activated Bonding
7 Jan 2019
Provides a strong and durable seal for automotive door applications.

01
Environmental Resistance
7 Jan 2019
Maintains performance under extreme temperature and humidity conditions.
