●Superior Electrical Conductivity: Features a tin-plated copper backing paired with conductive acrylic adhesive for optimal electrical performance in solar panels.
●Durable and Reliable: Maintains conductivity even after prolonged exposure to damp heat and electrical aging, ensuring consistent long-term performance.
●Exceptional Adhesion: Offers strong initial adhesion and excellent shear resistance, making it ideal for diverse solar manufacturing applications.
●Surface Options: Available in both embossed and plain surface finishes to meet varying design requirements.
●High-Temperature Tolerance: Withstands temperatures up to 200°C during short-term lamination processes, ensuring stability in standard production environments.

Attributes of Charge Collection Solar Power Tape
●Brand: Fonitaniya™
●Serial Number: FON-10024
●Backing Material: Tin-Plated Copper
●Adhesive Type: Conductive Acrylic
●Total Thickness: 2.3 mil (0.058 mm)
●Color: Silver
●Release Liner: Transparent PET
●Temperature Resistance: Short-term up to 200°C
●Widths Available: 4 mm, 6.35 mm, 194 mm
●Length Available: 66 m (216′)
●Electrical Resistance: Less than 0.002 ohm
●Adhesion to Steel: 7 N/cm (after 14 days)
●Shelf Life: 24 months
●Applications: Thin Film Solar Panels, EMI Shielding for Electronics
●Surface Options: Embossed or Plain

Fonitaniya™ Charge Collection Solar Power Tape
Fonitaniya™ Charge Collection Solar Power Tape FON-10024 is a high-performance adhesive tape specifically developed for thin-film solar panels. It features a 1-ounce tin-plated copper foil backing and a conductive acrylic adhesive, making it an effective solution for charge collection and electrical transfer in solar modules. Its composition is designed to withstand vacuum lamination processes typically used in solar panel assembly.
This tape ensures excellent XYZ conductivity, strong initial adhesion, and impressive resistance to damp heat and electrical aging, guaranteeing long-lasting performance. Its adhesive also boasts high-temperature shear strength, making it a reliable choice for demanding manufacturing environments. Available in multiple standard and custom sizes (from 4 mm to 194 mm in width and up to 66 m in length), it streamlines production by eliminating the curing time required for liquid adhesives, thus enhancing productivity.

Applications of Charge Collection Solar Power Tape
●Efficient Charge Collection: Acts as a charge collector or bus, facilitating seamless energy transfer in thin-film solar panels.
●Vacuum Lamination Compatibility: Performs reliably during vacuum lamination processes in solar panel production.
●EMI Shielding for Electronics: Provides electromagnetic interference protection for devices like smartphones and tablets.
●Customizable Installation: Available in various dimensions to accommodate diverse panel configurations and production needs.

●Improved Light Transmission: Provides an impressive optical transmittance of 91%, maximizing solar energy capture for enhanced module performance.
●Exceptional Durability: The thermoset composition offers robust resistance to environmental stressors, surpassing traditional encapsulant options.
●Reduced Moisture Penetration: Features a low MVTR for superior moisture protection, ensuring reliability in solar modules.
●Efficient Curing: Optimized for rapid curing, this film increases production speed and efficiency.

Attributes
●Brand: Fonitaniya™
●Serial Number: Fon-10025
●Type: Thermoset
●Thickness (Uncured): 18 mil (0.46 mm)
●Density (Uncured): 0.88 g/cm³
●Tensile Strength (Cured): 9.1 MPa
●Elongation (Cured): >1000%
●Adhesion to Glass: >100 N/cm
●Water Absorption (Cured): <0.01%
●Electrical Volume Resistivity (Cured): 1.0 × 10^14 Ω·cm
●Optical Transmittance (Cured): 91%
●UV Cutoff (Cured): 310 nm
●MVTR: 5.7 g/m²·day
●Continuous Service Temperature: >90°C
●Shelf Life: 6 months

Overview
The Solar Encapsulant Film Fon-10025 is a premium encapsulant solution for photovoltaic (PV) modules, combining high optical clarity with exceptional resistance to moisture, UV radiation, and thermal stress. Its rapid curing ability supports efficient manufacturing processes, while its advanced thermoset material composition ensures longevity and reliability. By reducing moisture-related degradation and enhancing light transmission, Fon-10025 contributes to optimal solar panel performance and energy output.

Applications
●Protects solar cells from environmental stress during lamination.
●Promotes high energy conversion efficiency in PV modules.
●Enhances durability and structural integrity of solar panels.

●Strong Bonding Power: Delivers exceptional adhesion across a range of surfaces, ensuring secure attachment of solar panel components.
●Heat Resistant: Performs reliably under sustained temperatures up to 100°C, making it suitable for high-temperature environments.
●Robust Durability: Built to withstand challenging outdoor conditions, including UV exposure, moisture, and weather changes, for long-lasting performance.
●Versatile Applications: Ideal for integrating thin, lightweight solar modules into wearables, vehicles, and building systems, simplifying assembly and enhancing efficiency.

Key Specifications

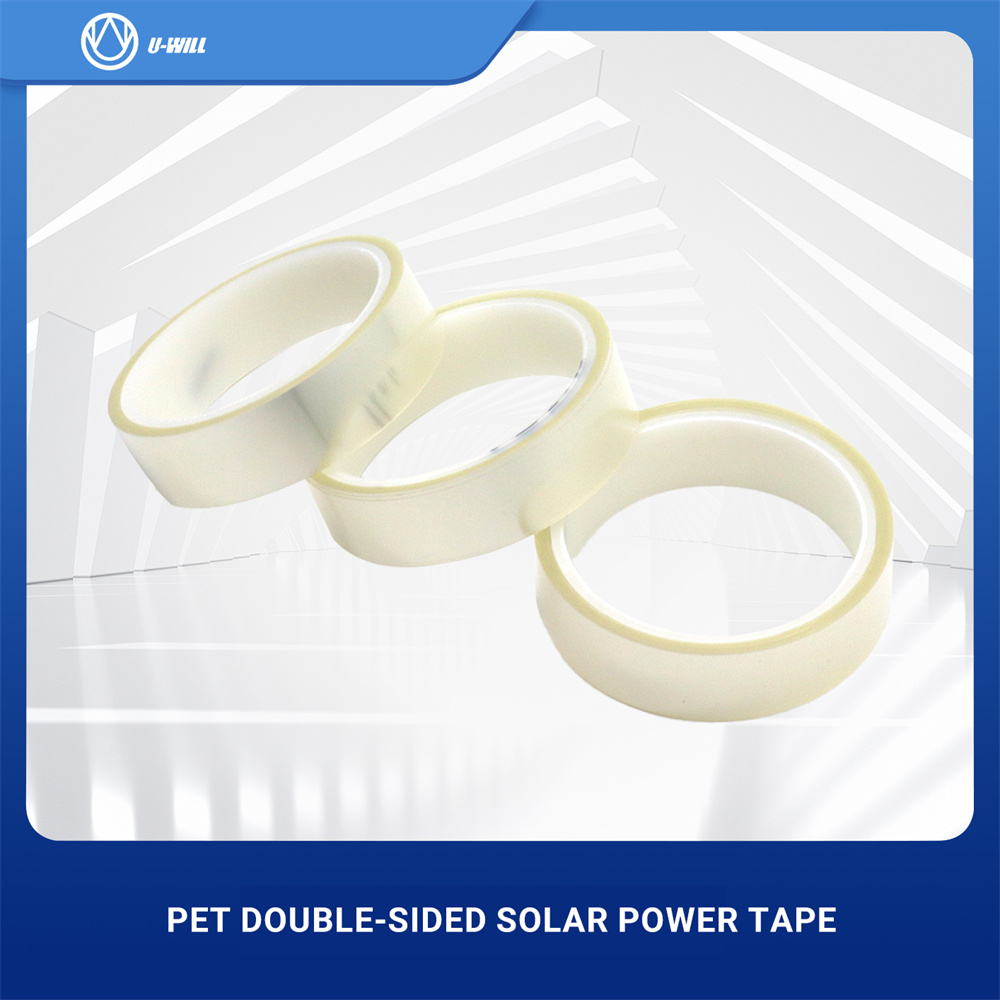

Fonitaniya™ 200μm PET Double-Sided Solar Power Tape

The FON-10028 tape offers a dual-sided adhesive solution crafted for the secure installation of solar panels and components. Designed to work with thin, ultralight photovoltaic modules, it is ideal for applications in wearables, vehicles, and building surfaces. With a thickness of 200 µm, this tape guarantees outstanding adhesion, reliability, and durability in the rigorous conditions of solar installations.
Its advanced temperature tolerance allows it to handle long-term exposure to 100°C and short-term peaks of 200°C. Additionally, superior UV and weather resistance make this tape a prime choice for outdoor use. Its ability to bond effectively with low-energy surfaces further extends its applicability across varied assembly needs.
Engineered for efficiency, the tape is easy to apply manually or in automated processes, ensuring smooth integration into solar systems. With excellent chemical and humidity resistance, it retains structural integrity and adhesion over time, even in challenging environments.

Applications

●Securing flexible or semi-flexible photovoltaic panels onto building surfaces.
●Enhancing solar integration in vehicles.
●Attaching ultralight solar modules in wearable technology.

• Outstanding Heat Resistance: Designed to handle prolonged exposure to temperatures as high as 155°C and brief spikes of up to 180°C, ensuring dependable performance in demanding solar panel applications.

  • Enhanced Adhesion and Longevity:Built with a PET backing and advanced silicone rubber adhesive for superior bonding to photovoltaic glass. Its weather-resistant primer coating adds excellent UV and aging durability.
  • Versatile and Precise Design:This transparent, single-sided tape is ideal for splicing filmic materials, litho mounting, edge protection, and reinforcement. Available in various widths and lengths, accommodating up to 200m rolls.

  Technical Specifications

• Specification	Details
  Brand	Fonitaniya
  Serial Number	FON 10021
  Backing	PET
  Adhesive	Silicone Rubber
  Color	Transparent
  Temperature Resistance	-40°C to 180°C
  Thickness (μm)	65, 85, 135
  Customizable	Yes
  UV-Resistant	Yes
  Elongation (% at Break)	80
  Adhesion to Steel (N/10 mm)	4.5
  Tensile Strength (N/10 mm)	50 / 60.1
  Operating Temperature	-40°C to 155°C
  Peak Temperature	180°C for 30 minutes
  Storage Period	12 months
  Storage Conditions	5-30°C, 40-60% RH
  Production Environment	10,000-level dust-free workshop

Fonitaniya Solar Tape

The High-Temperature Positioning Tape (FON 10021) is a precision-engineered solution tailored for double-glass solar modules. Designed to secure and position solar cells effectively, this specialized tape ensures exceptional durability and optimal performance in photovoltaic systems.

Manufactured with a robust PET backing and coated with a premium silicone rubber adhesive, this tape delivers exceptional adhesion to photovoltaic glass. It is crafted to withstand long-term exposure to temperatures of up to 155°C, while short-term peaks of 180°C for up to 30 minutes ensure reliability under extreme conditions. Produced in a state-of-the-art, 10,000-level dust-free workshop, the tape offers a flawless finish and unmatched reliability.

The transparent, single-sided design provides versatility for multiple applications, including splicing filmic materials, litho mounting, and edge protection or reinforcement. With excellent initial tack, high shear strength, and a weather-resistant primer coating, it boasts remarkable UV resistance and aging durability. Customizable in widths and lengths up to 200 meters, this solar tape meets diverse installation needs, making it an indispensable tool for solar panel assembly and maintenance.

• Strong Adhesion:Delivers high ultimate adhesion for durable and long-lasting performance.
• Resilient to Elements:Resistant to UV rays, water, and aging, making it perfect for challenging outdoor environments.
• Flexible & Durable:PE foam core provides superior flexibility and structural strength.
• Effortless Assembly:Ensures efficient solar module assembly with excellent foam compression.
• Versatile Resistance:Offers exceptional durability against humidity, vibration, and temperature variations.

Fonitaniya™ Solar Tape FON-10022 for Bonding Solar Modules

• Brand:Fonitaniya™
• Serial Number:FON 10022
• Adhesive Type:Tackified acrylic
• Backing Material:PE foam
• Color:Black/White
• Total Thickness:1500 µm
• Elongation at Break:180%
• Tensile Strength:10 N/cm
• Humidity Resistance:Very Good
• Static Shear Resistance:40°C: Good, 70°C: Very Good
• Temperature Resistance:Long term: 80°C, Short term: 80°C
• UV and Ageing Resistance:Very Good
• Softener Resistance:Medium
• Width:Customizable upon request
• Peel Adhesion:Foam splitting on steel, ABS, aluminum, PC, PET, PS, PVC

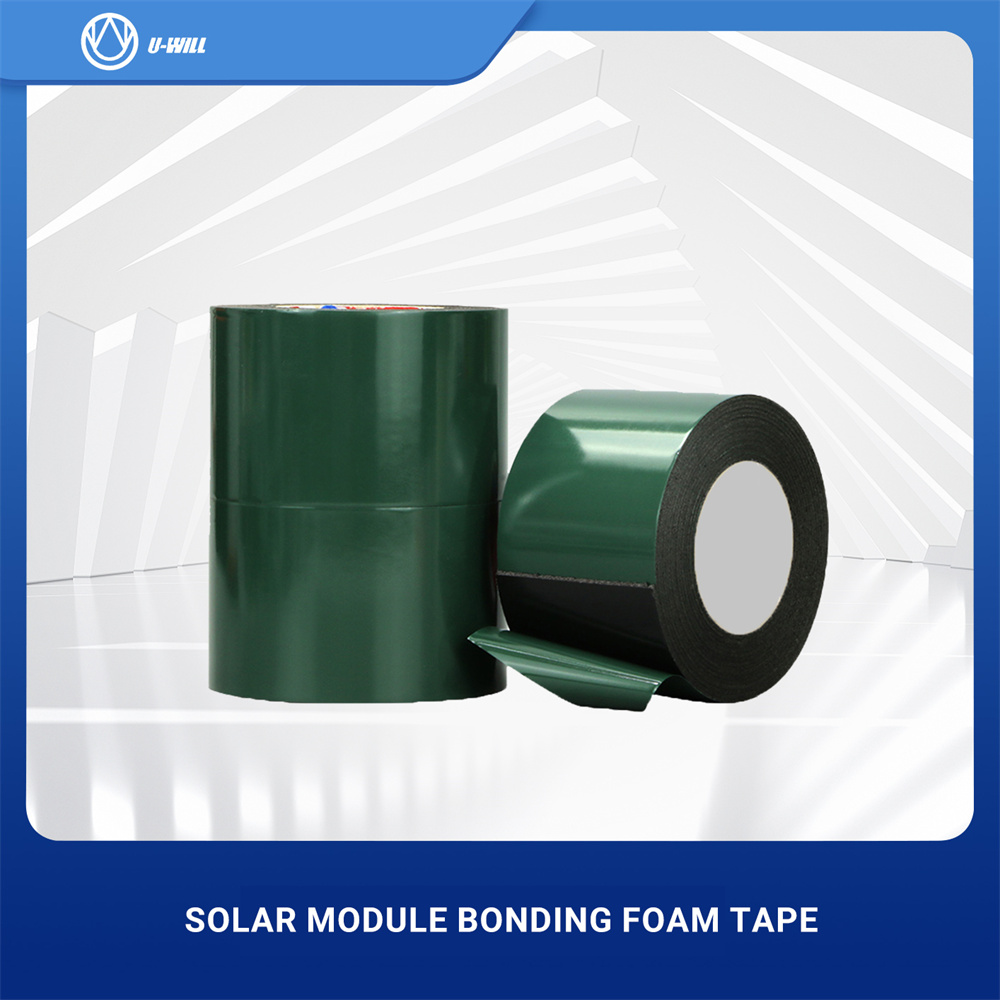

Double-Sided PE Solar Tape Overview

Fonitaniya™ Solar Module Bonding Tape is expertly engineered to deliver robust adhesion in demanding outdoor applications. Perfect for securing solar module frames, trims, and profiles, this tape ensures reliable, long-lasting bonding even under exposure to extreme temperatures, UV rays, and moisture.

The PE foam core adapts seamlessly to various surfaces, offering excellent impact resistance, vibration dampening, and noise absorption. Designed for both automated and manual assembly, this tape streamlines the installation process while maintaining consistent performance.

What sets Fonitaniya™ Solar Module Bonding Tape apart is its advanced tackified acrylic adhesive, which provides secure bonding to diverse materials, including steel, aluminum, ABS, and more. Its superior compression facilitates efficient solar module assembly, while exceptional resistance to humidity, aging, and temperature fluctuations ensures that modules stay securely in place over time.

This tape is the perfect choice for applications in solar energy, automotive, and electronics, offering unmatched durability, flexibility, and strength in challenging outdoor conditions.

Applications

• Frame Bonding:Ensures a firm attachment of solar module frames, improving structural stability.
• Trim and Profile Mounting:Provides secure bonding for trims and profiles, creating a durable and seamless finish.
• Backsheet Attachment:Offers a stable connection for backsheets, protecting modules from environmental damage.
• Glass Panel Bonding:Ensures reliable adhesion between glass panels and module frames for lasting durability.
• Junction Box Securing:Provides strong bonding to secure junction boxes, safeguarding electrical components.

• Exceptional Clarity: Crystal-clear transparency enhances visibility during lamination.
• Strong Adhesion: Ensures cells remain securely in place, facilitating efficient lamination.
• Durable and Flexible: Excellent aging resistance with 90% elongation at break.
• User-Friendly Application: Easy to dispense without curling; supports both manual and automatic application.
•
• Environmentally Safe: Acid, solvent-free, and made from eco-friendly PP foil, withstanding temperatures up to 150°C.

  Brand	Fonitaniya
  Serial Number	FON-10023
  Backing Material	BOPP
  Adhesive	Acrylic
  Total Thickness	50μm
  Adhesion to Stell	3.5 N/cm
  Tensile Strength	27 N/cm
  Elongation at Break	90%
  Temperature Resistance	Up to 150℃ (short term)
  Aging Resistance	Excellent
  Environmental Compliance	Acid and Solvent-free
  Dispensing	Easy Dispensing without Curling
  Application Field	Secure Cells During Lamination of Solar Panels

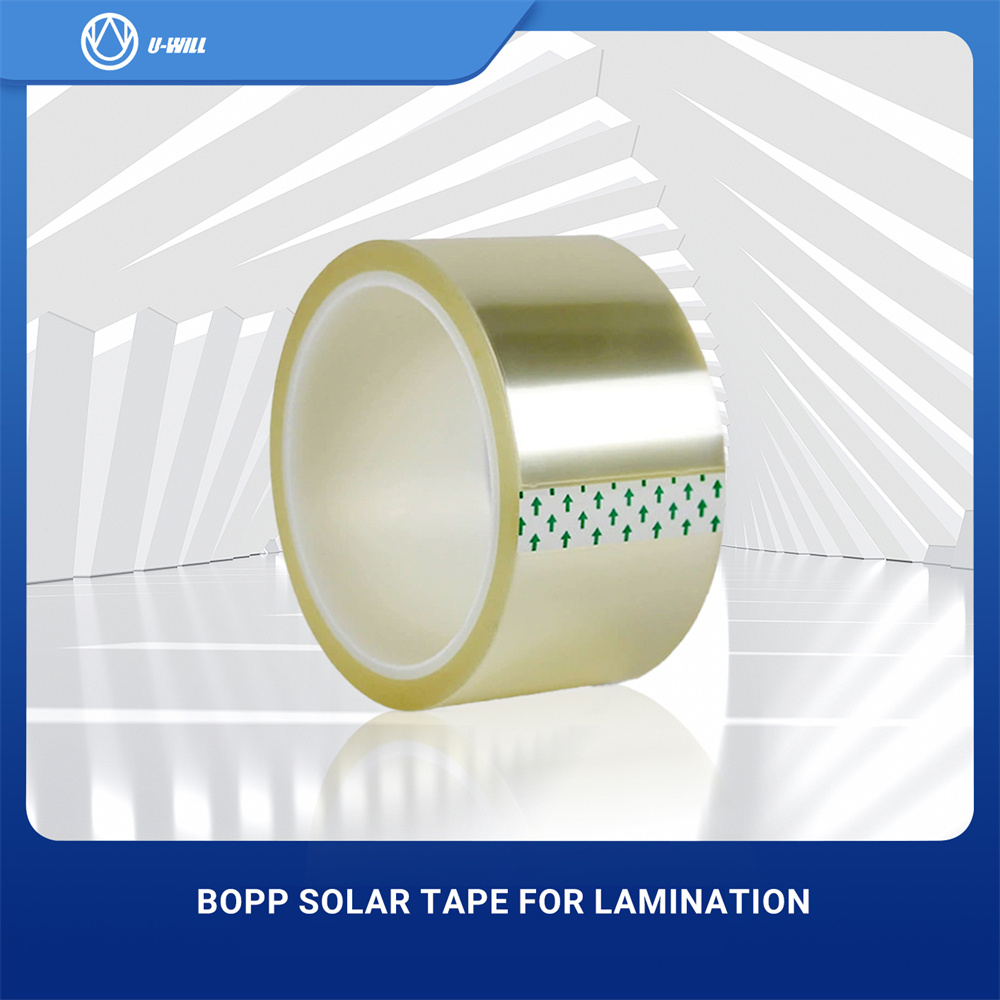

  BOPP Solar Tape

  Fonitaniya™ BOPP Solar Tape(FON-10023) is a high-performance, transparent tape specifically designed for the lamination of solar cells. Constructed with a durable BOPP backing and a water-based acrylic adhesive, this tape provides exceptional clarity and strong adhesion, ensuring that solar cells remain securely in place during the lamination process. Its reliable performance makes it an ideal choice for manufacturers looking to enhance the efficiency and quality of solar panel production.

  In addition to its superior bonding capabilities, Fonitaniya™ BOPP Solar Tape boasts excellent aging resistance, allowing it to withstand prolonged exposure to environmental conditions without degradation. The easy dispensing feature ensures a smooth application without curling, making it suitable for both manual and automated processes.

  Environmentally friendly, this tape is acid and solvent-free, providing peace of mind for eco-conscious users. With high-temperature resistance up to 150°C, Fonitaniya™ BOPP Solar Tape is the perfect solution for all your solar lamination needs.



  Application

  Secure solar cells during the lamination process.

  To use Fonitaniya™ BOPP Solar Tape, ensure that the surfaces to be bonded are clean and free of dust or contaminants. Unroll the tape and cut it to the desired length. Apply the tape directly onto the solar cells, pressing firmly to secure it in place. For optimal results, ensure consistent pressure during application to achieve a strong bond. The tape can be easily dispensed without curling, making it suitable for both manual and automated lamination processes.
